Your present location:Home >> Products >> LED Tube Light >> Led Tube Ul, 10w Led Tube Lights, home lighting led tube8 new design 110lm/w
  • Product Name: Led Tube Ul, 10w Led Tube Lights, home lighting led tube8 new design 110lm/w
  • Model Number: Led Tube
  • Power:
  • Size:
  • Input Voltage:
  • Material:

Led Tube Ul, 10w Led Tube Lights, home lighting led tube8 new design 110lm/w




Product Description

Input Voltage

120-277V AC, 50/60Hz

Power Consumption

10W

Quantity of LED

SMD2835

Operating Temperature

-20--+60°

LED Lamp Life(Hour)

50,000 hours

Relevant Certificate

UL DLC CE RoHS

Warranty

3 years

Color Temperature

2700-6500K

Beam Angle(Degree)

270°

Fixture lumens output

1100LM (milky cover), 120LM (transparent)

CRI

80Ra

Mechanical Data:

Capacity

BERYL

Driver

Constant current driver

Size

600/26/26

PF

>0.9

Housing Material

Pure aluminium + PC cover

Aluminum PCB

7MM width

Compatible very welll with the inductance ballast, electronic ballasts of North America, directly used in AC.



T8 Plastic Tube Features



1. Plastic material cover, lighter than Aluminum tube; insulation safety.
2. Compatible with the inductance ballast, electronic ballasts of North America, directly used in AC.
3. Conform to the power supply system of industrial and civilian of USA, pass EMC & LM80.
4. 3 years warranty, 10 years lifespan.
5. High color rendering Ra≥80, high photosynthetic efficiency 110lm/W.

6. UL DLC CE RoHS approval.

7. Double end input.

8. The driver have through the Short Circuit, Over Current, Over Voltage, Over Temperaturem testing, is stable and capable.

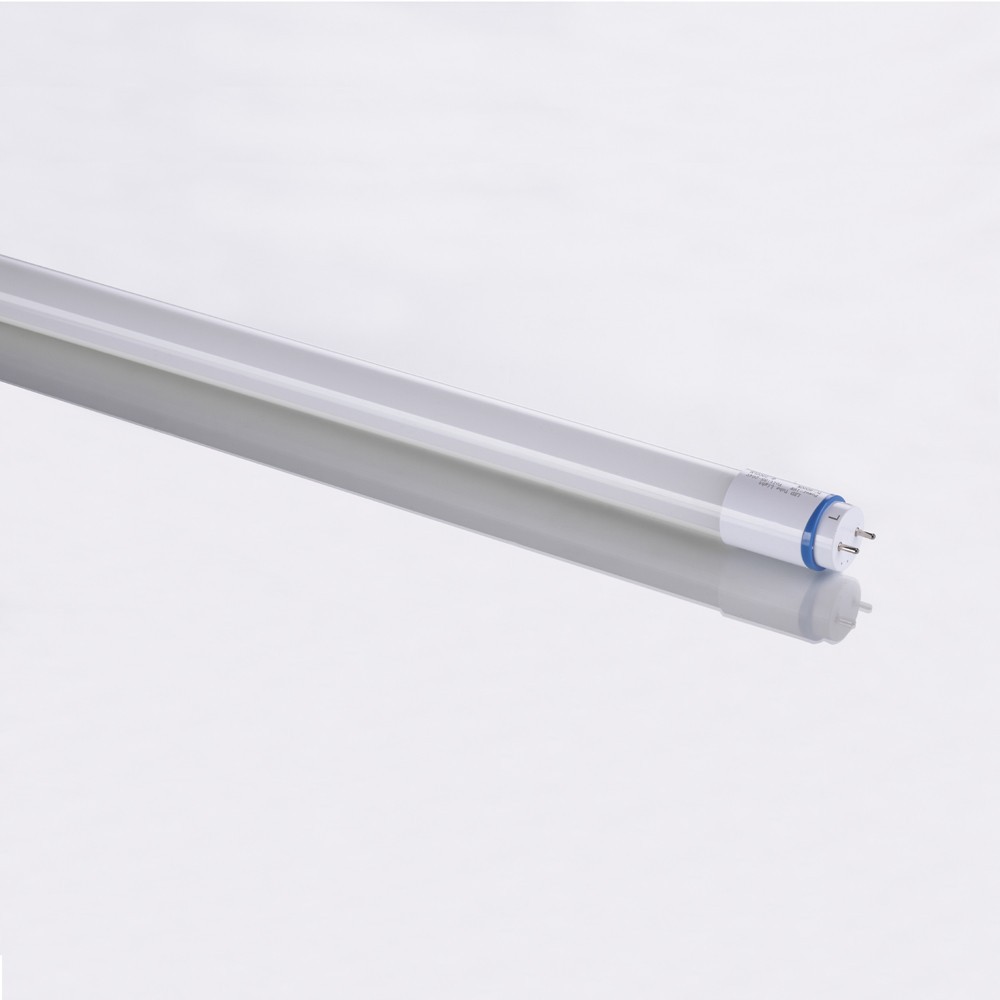

T8 Plastic Tube Product display

T8 Plastic Tube Details

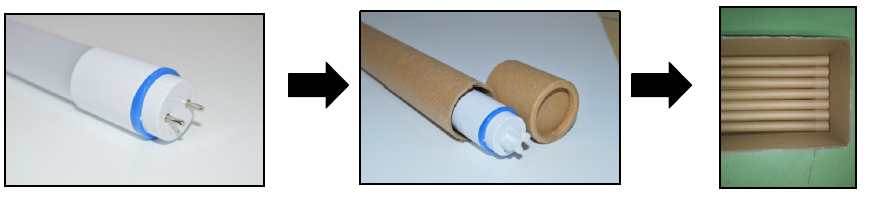

Packaging & Shipping

Strong package suitable for export.

Product box size: 625*40mm
Carton size & Qty: 625*255*165mm 35pcs/ctn
N.W: 120G
G.W: 210G
