Your present location:Home >> Products >> LED Panel Light >> Warm White 600*600 48W SMD Triac Dimming LED Panel Light with wall switch
  • Product Name: Warm White 600*600 48W SMD Triac Dimming LED Panel Light with wall switch
  • Model Number: 140
  • Power: 42W
  • Size: 595X595X10.4 mm
  • Input Voltage: AC 100~240V
  • Material: Aluminum frame+PMMA Diffuser plate

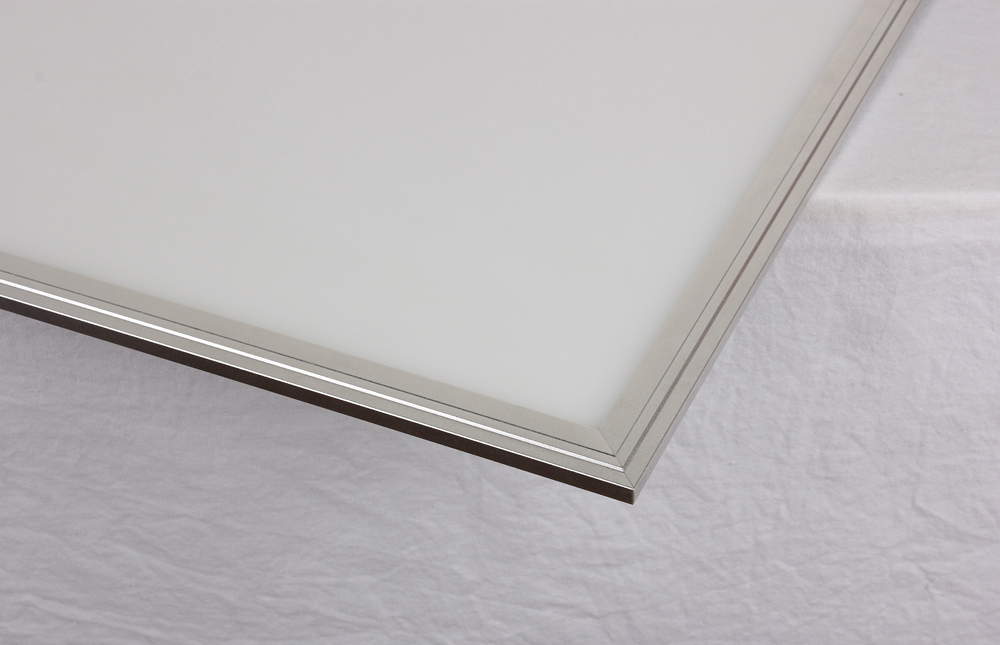

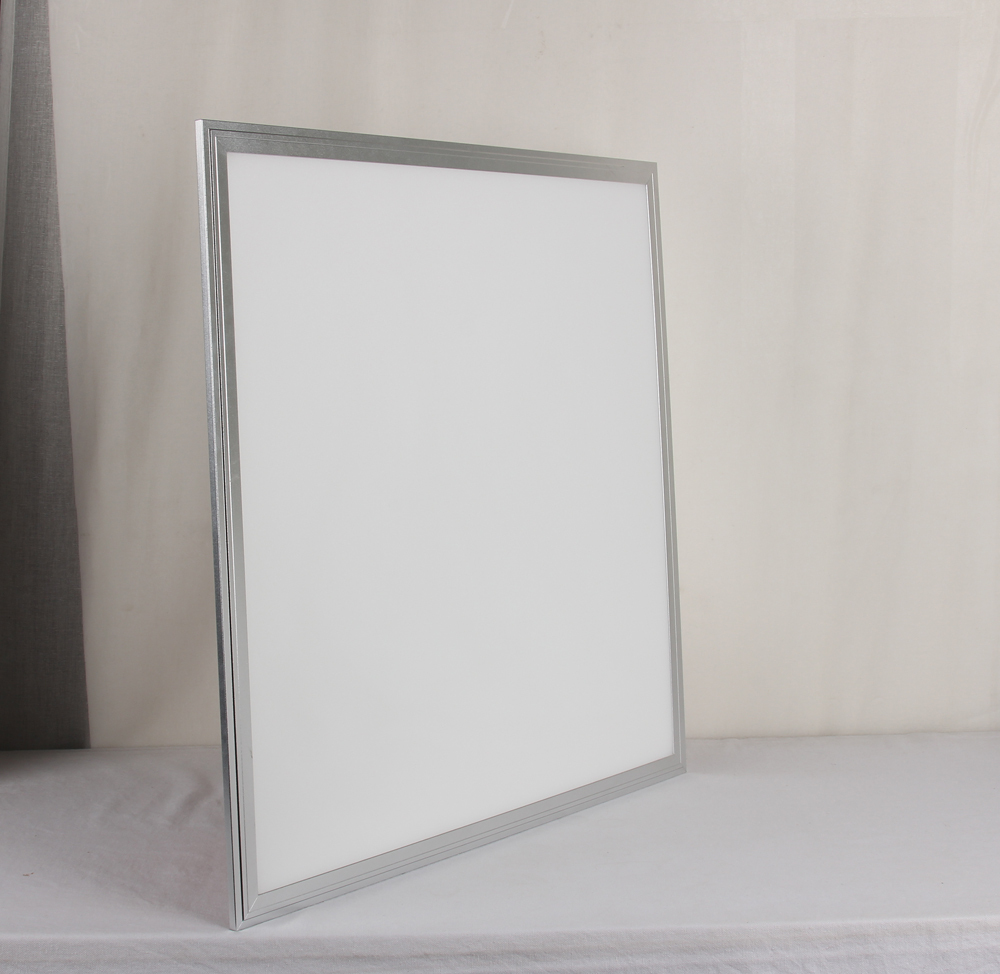

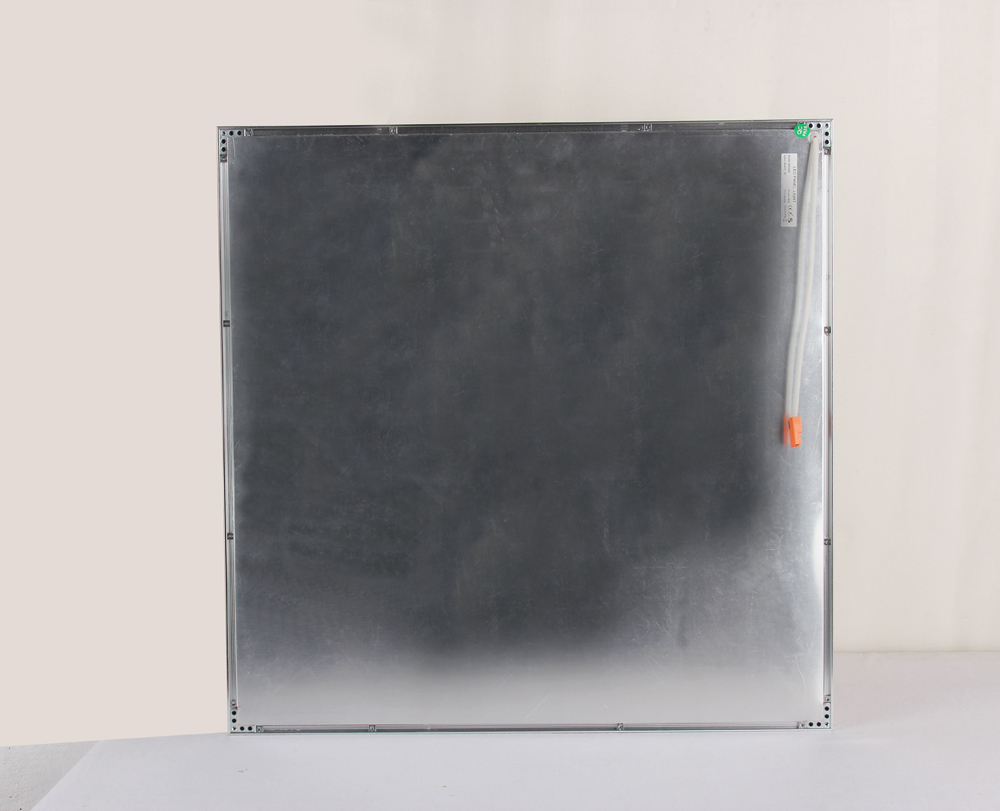

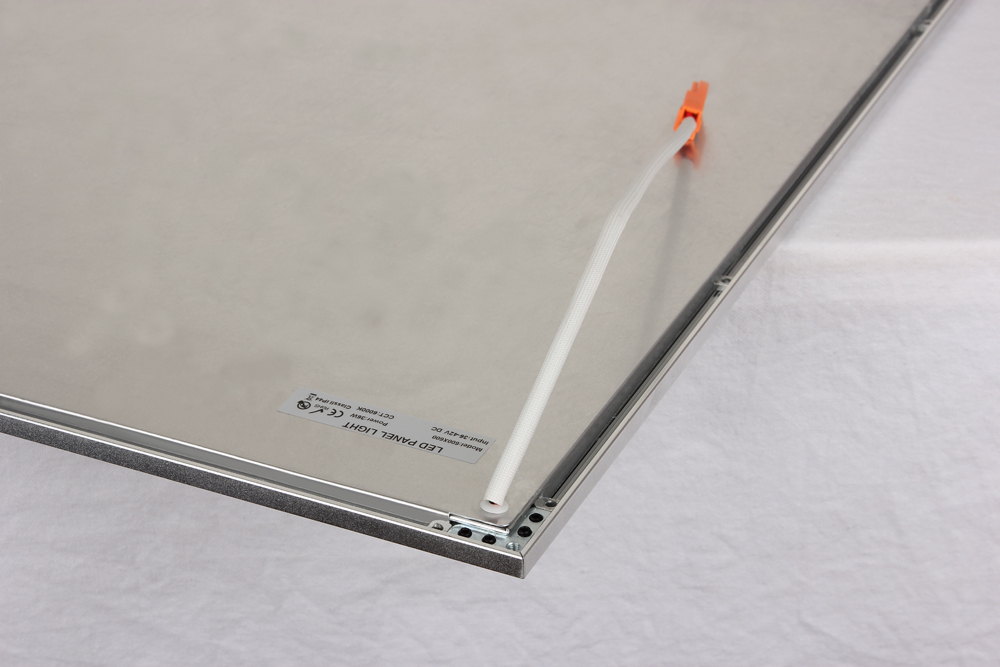

Warm White 600*600 48W SMD Triac Dimming LED Panel Light with wall switch
Product Description

1.Special different view angles,  mixing lighting design. Great light evenness,  no dark zones.

2. High light output at a reduced energy consumption of up to 50%.

3. Over 50000 hours lifespan.

4. Wide angle of deflection with even light distribution.

5. No startup time,  no flickering,  no humming.

6. High efficiency constant current driver with built in overheat protection that remains stableat a wide range of input voltages.

7. Environmentally friendly,  mercury and lead free.

8. Causes no electromagnetic interference.

9. Easy installation.

Features

² 9mmUltra-thin Design

² PB Free

² CE & ROHS Compatible

² LED TYPE:SMD 4014  0.2W

² CRI:≥80

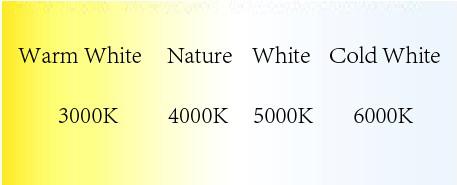

² Optional CCT:3000K / 4000K / 5000K / 6000K

² Light Angle:120°

² Insulation:CLASSⅡ

² Ingress Protection:IP44

² Working environment:10~80%RH,-20°C~50°C

² Mounting Dimension:282.2*282.2mm



Specifications
Model P66-60K
Item name Led Panel Light
Dimensions 595mm*595mm*9mm
Power comsuption 60W
Color temperature 3000K
Emitting color  Warm white
Lumen 80Lm/W
Beam angle >110°
CRI Ra>80
Certificates TUV, CE, CB, GS, RoHS
Life expectancy >50,000h
Warranty 3 years warranty
Lead time 10 ~20 work days
Material Aluminum alloy+Acrylic+PC
LED q'ty 300pcs
Power supply Meanwell PCD-60
Input voltage(driver) 180-250Vac / 50~60Hz
Net weight 3.6KG
Dimmable Available (with Dimmer and dimmable driver)
Light source  0.2W SMD4014
PF >0.95
