Your present location:Home >> Products >> LED Spot Light >> ul etl 5w cob led gu10 epistar
  • Product Name: ul etl 5w cob led gu10 epistar
  • Model Number: led spot gu10
  • Power: 5W
  • Size: 50*61mm
  • Input Voltage: 85-265V DC/AC
  • Material:

ul etl  5w gu10 5w cob led gu10 cob led epistar led gu10



Specification

Led GU10

1. LM80 LED

2. High lumen 90lm/W +High CRI 80Ra

3. Various power 3W/4W/5W/6W

4. CE, ROHS, ERP, ETL/cETL4003956 list

5. Wide angle 80 degree or narrow angle 45/35 degree



General Characteristics:
Cap-base: GU10
Bulb:  PAR16 (PAR 2 inch)
Main Application:  Indoor reflector.
Rated Lifetime:   35,000 hr
Nominal lifetime: 35,000 hr



Light Technical Characteristics

Correlated color temperature: 2700-6500K, warmer white, soft white, daylight, bright white (2300K is available)
Beam Angle: 90/38D
Beam Description: 40D Medium beam
Luminous Flux: 450-500lm
Color Rendering Index:  >80%  (90Ra option)



Product Description

Type

KING-GU10-T6

LED Power

5W COB LED

Lumen

450±30 lm

Color Rendering Index

70Ra, 80Ra

Input Voltage

90-265V(not dim),110V/120/220V/230V/240(dim)

Base

GU10

Beam Angle

90/38°

Dimension

50*59mm

Warranty

 3 years

Life Time

  ≥30,000HRS

Color temperature

warm white, natural white,cool white (2200-7000K)

Certificates

ERP,CE,RoHS,ETL/cETL 4003956

Dimmable

YES

Package qty

200pcs/carton

Inner box

53X53X73mm

Outer carton

58x58x20cm

Gross weight

16kgs/carton

 Parameters

Product

Power

Voltage

Lumen

Color

Size(D*H)

Beam angle

Certification

GU10

5W

90-260V

450-500lm

2200-7000K

50*54mm

80°/35°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

5W

90-260V

450-500lm

2200-7000K

50*59mm

80°/35°/90°38°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

5W

90-260V

450-500lm

2200-7000K

50*61mm

90°/80°/35°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

5W

90-260V

450-500lm

2200-7000K

50*67mm

80°/45°/35°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

5W

90-260V

450-500lm

2200-7000K

50*67mm

45°,35°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

6W

90-260V

550-600lm

2200-7000K

50*67mm

80°/45°/35°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

6W

90-260V

600-650lm

2200-7000K

50*72mm

80°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

6W

90-260V

600-650lm

2200-7000K

50*76mm

45°,35°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

7W

90-260V

650-700lm

2200-7000K

50*67mm

35°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

7W

90-260V

650-700lm

2200-7000K

50*87mm

80°

ETL/CETL,SAA,CE,ROHS,ERP

GU10

7W

90-260V

650-700lm

2200-7000K

50*90mm

80,45°,35°

ETL/CETL,SAA,CE,ROHS,ERP

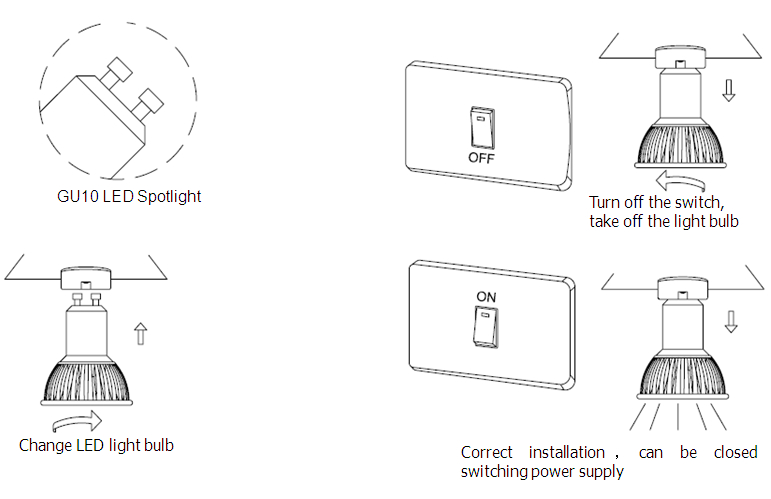

Installation

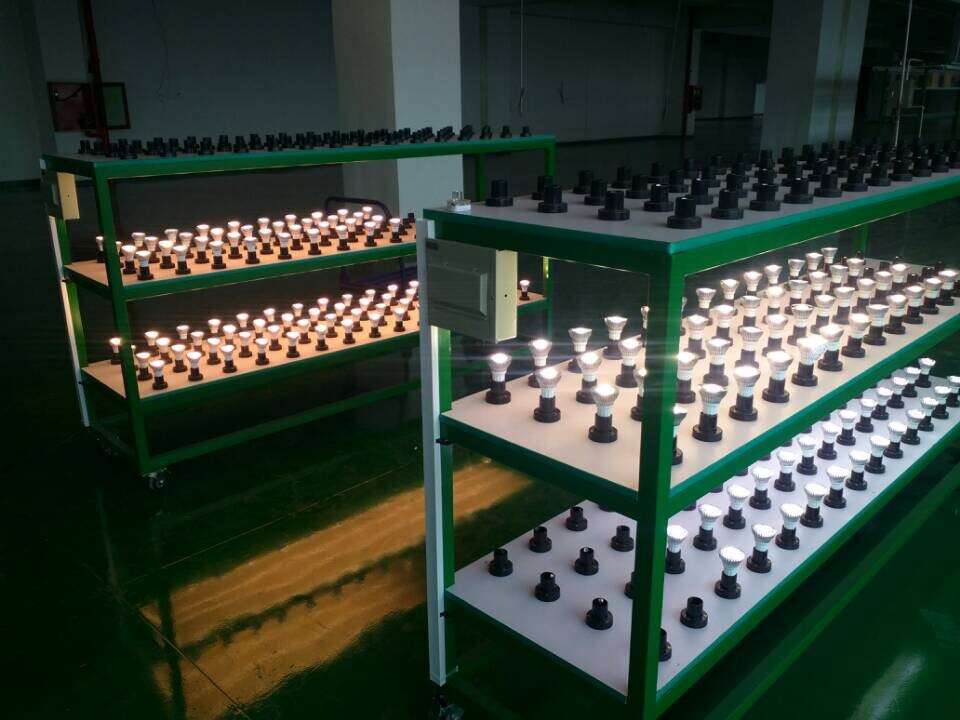

Facotry show
